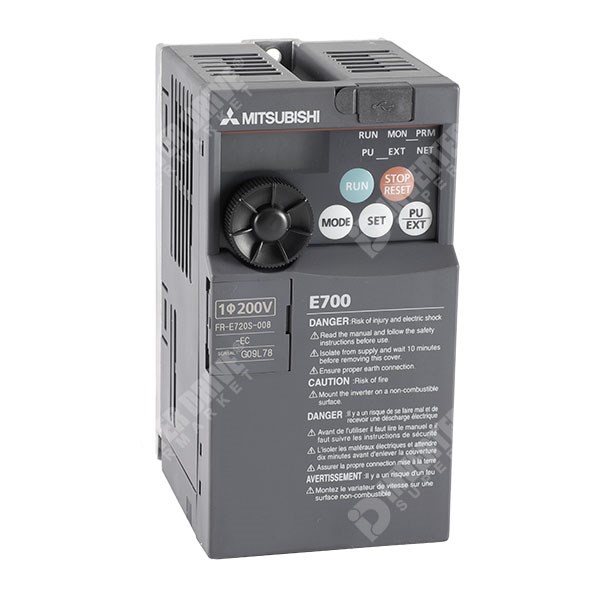

Mitsubishi FR-E700 Series AC Frequency Inverter for 0.1kW (1/8HP) 3 Phase motor in VxF or Sensorless Vector control to 0.8A. Simple set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.
Last few pre-SC models available at this special price.
Size 1A – 68mm Wide x 95.6mm Deep x 128mm High. IP20
Overload – 150% x 60 seconds, 200% x 3 seconds
Speed Control Range – 0.2Hz to 400Hz.
Braking – None.
2 Analogue Inputs, 7 Digital Inputs, 1 Analogue Output, 2 Digital Outputs, 2 Relay Contact Sets, Modbus RTU, integrated USB port.
Input Current – 2.2A.
Input Voltage – 200-240V Single Phase +10% -15% at 50/60Hz ±5%
EMC Filters – Not included (see linked products below for external EMC filter module)
Cubicle mount.
Rated -10° to 50°C Ambient.
Ventilation space in front – 10mm
Ventilation space above and below – 100mm.
Ventilation space at sides – 0mm (10mm when surrounding air temperature exceeds 40°C).
Mounting via 3 x 5mm diameter holes at rear on 56mm x 118mm centres.
Full part number is – FR-E720S-008-EC
